500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | 강철, 쿠퍼 | 눈금자 길이 | 30m, 50m, 100m, 200m, 300m, 400m, 500m |
|---|---|---|---|
| 이름 | 레벨 측정기 깊은 우물 미터 깊이 레벨 미터 수위 센서 | 용법 | 우물, 시추공 및 파이프의 수위를 측정합니다. |
| 구성 | 프로브, 강철 자, 수신 시스템, 릴 | 프로브 직경 | Φ15mm*160mm |
| 눈금자의 너비 | 9.8mm | 눈금자 케이블 코팅 | PE, PU |
| 지휘자 | 통조림 구리 와이어 | 배터리 | 9V |
| 릴 재료 | 강철 | 배송 리드 타임 | 5 일 만에 |
| 강조하다 | 500m flexible water level sensor,deep well meter with warranty,borehole inspection depth level meter |
||
제품 설명
500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor
Brief Introduction:
The WLM 500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor offers a precision-engineered solution for accurate water level measurements. Perfectly designed for assessing the water level in wells, boreholes, and pipes, this device is indispensable for tracking groundwater levels and evaluating seepage lines in earth and rock dams with unparalleled accuracy.
This versatile meter is ideal for both construction projects and long-term safety monitoring, ensuring the ongoing integrity of your project.
Structure:

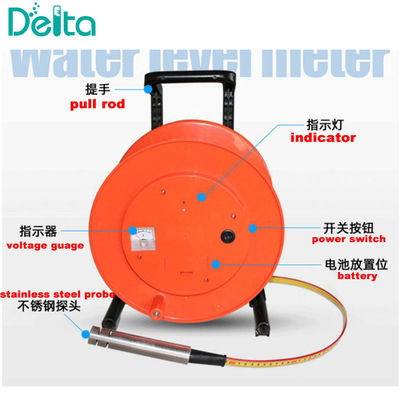

The WLM 500m Flexible Level Measuring Instrument Deep Well Meter Depth Level Meter Water Level Sensor is an integrated system featuring a durable probe, an innovative steel ruler, an advanced receiving system, and a compact reel design.
- Probe: Crafted from high-grade stainless steel, the probe features a water-resistant contact point. It automatically activates the receiving system upon contact with the water surface and deactivates once out of contact, ensuring efficient operation.
- Steel ruler tape: Utilizing cutting-edge plastic technology, the steel ruler is seamlessly bonded with the cable, providing rust protection and simplifying the measurement process for enhanced convenience and precision.
- Receiving system: This sophisticated system comprises a speaker and a peak indicator. The speaker delivers a consistent buzzing sound, while peak indication is managed via a voltmeter. A switch allows seamless selection of the preferred system, ensuring consistent accuracy across all readings.
- Frame: Ingeniously designed with a reel and bracket, the frame houses the receiving system and battery inside the reel, while the steel ruler cable is neatly wrapped around the exterior, optimizing functionality and ease of use.
Main Parameters:
| Model | Max. test depth / (m) | Length (mm) |
Width (mm) |
Height (mm) |
Probe (mm) |
Width of ruler (mm) |
Weight (kg) |
| WLM-30 | 30 | 310 | 250 | 430 | Φ15*160 | 9.8 | 2.85 |
| WLM-50 | 50 | 310 | 250 | 430 | Φ15*160 | 9.8 | 2.95 |
| WLM-100 | 100 | 310 | 250 | 430 | Φ15*160 | 9.8 | 4.3 |
| WLM-150 | 150 | 310 | 250 | 430 | Φ15*160 | 9.8 | 4.7 |
| WLM-200 | 200 | 310 | 250 | 430 | Φ15*160 | 9.8 | 7.3 |
| WLM-300 | 300 | 360 | 250 | 430 | Φ15*160 | 9.8 | 7.85 |
